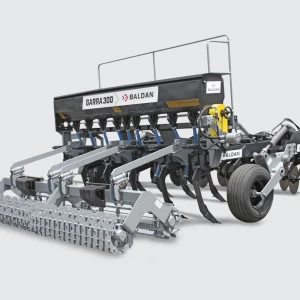

GARRA 300 - Scarifier Plow with Automatic Shank

Scarifier Plow with Automatic Shank

Developed to solve the problems caused by soil tillage through plowing and harrowing. The scarifier helps to break compacted layers in the soil, promoting several benefits.

Feature and Specifications

The Baldan “GARRA 300” was developed to solve the constant problems that come from the soil rotation through plowing and harrowing, or in the case of no-tillage, by the constant traffic of heavy machinery. The use of the machines at inappropriate times compacts the soil and restricts the growth of the root system of the plants, being necessary the use of methods that attack the soil less. To avoid this, farmers started to use the soil scarification method, the process of breaking the soil layers through the penetration of mechanical rods, using agricultural equipments called “scarifiers”. This procedure is called “minimum tillage”, since it is not the reversal of the soil with inversion of layers, but a less aggressive breakage to the soil.

Promoting soil decompression has been the main benefit that Baldan’s GARRA 300 offers to farmers. The penetration of the mechanical rods by the scarifier breaks the denser layers of the soil, causing a reduction in compaction levels and leaving the soil ideal for better water penetration, nutrient uptake by plants and better development of the root system of crops. in addition, a well- developed root system provides increased resistance to drought.

Technical Specifications



Model  Nº Of Stens   Nº  of Discs Working Width (mm) Sweep Size (mm) Total Lenght (mm) Aprox. Weight (Kg) Total Hight (mm) Total Width (mm) Tractor Power (Hp)
GARRA 300-Simple Roller  7 7 2100   1 x 2150   5518  1985   1364   2412   90 - 105
GARRA 300-Simple Roller  9 9 2700   2 x 1300   5518   2412   1364   3014  110 - 135
GARRA 300-Simple Roller  11 11 3300   2 x 1600   5518   2809   1364   3585   120 - 165
GARRA 300-Simple Roller  13 13 3900   2 x 1900   5518   3155   1364   4224   165 - 215
GARRA 300-Simple Roller  15 15 4500   2 x 1300 e 1 x 1600   5518   3680   1364   4806   180 - 225
GARRA 300-Simple Roller  17 17 5100   2 x 1600 e 1 x 1900   5518   4192   1364   5406  204 - 255
GARRA 300-Double Roller  7 7 2100   1 x 2073   6052   2205   1364  2412   90 - 105
GARRA 300-Double Roller  9 9 2700   2 x 1240  6052   2793  1364  3014  110 - 135
GARRA 300-Double Roller  11 11 3300   2 x 1528   6052   3368   1364  3585   120 - 165
GARRA 300-Double Roller  13 13 3900   2 x 1828   6052  3701   1364  4224   165 - 215
GARRA 300-Double Roller  15 15 4500   2 x 1240 e 1 x 1528   6052  4263   1364  4806   180 - 225
GARRA 300-Double Roller  17 17 5100   2 x 1528 e 1 x 1828   6052  4893   1364  5406  204 - 255
GARRA 300-Seed Deposit  7 7 2100   1 x 2073   6052   2482  2476 3071  90 - 105
GARRA 300-Seed Deposit  9 9 2700  2 x 1240   6052  3090 2476  3673  110 - 135
GARRA 300-Seed Deposit  11 11 3300  2 x 1528   6052   3695  2476  4256   120 - 165
GARRA 300-Seed Deposit  13 13 3900   2 x 1828   6052   4069  2476  4883  165 - 215



Work Denpt (mm)  Disc Diameter (mm) Wheels  Nº of Wheel Min. Space Between Lines (mm)
300  18”   11L-15 X 12 lonas   2 300
