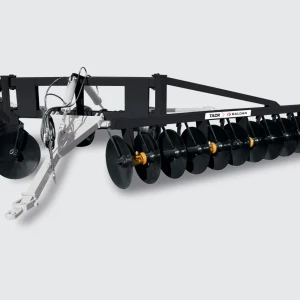

TACR - 14 to 22 discs - Remote Control Terracing Plough

Developed to raise terraces and reduce soil erosion, it has 26’’ discs and tapered bearing bearings with oil and/or grease bath that increase lubrication performance of the equipment.

TECHNICAL SPECIFICATIONS

NR of Discs  Terrace Dimension
mm
Approximate Weight
Kg
Tractor Power
Hp
Transport Width
mm
14 900 x 5450 1885 90-100 3028
16 900 x 6130  2028 104-112  3028
18 900 x 6820  2170 117-126  3028
20  900 x 7510 2390 130-140  3028
22  900 x 8200 2510 143-154  3028



Disc Spacing
mm
Working Depht
mm
Axle Diameter
Ø
Discs Diameter
Ø
Wheels Set
400 50-300  1.5/8’’ 26’’  Single







Request
a quote

Just fill out a form and send your message.
We will get back to you soon with more information

Request a quote
